欧陆eurotherm T800控制器,编程器,数据采集器
产品编号：221747-124
产品型号：T800
市场价格：0元/台
批发价格：0元/台
更新时间：2011.03.23
浏览次数：
详细信息
|
Uniquely All the Functionality You'll Ever Need in a Single Unit |

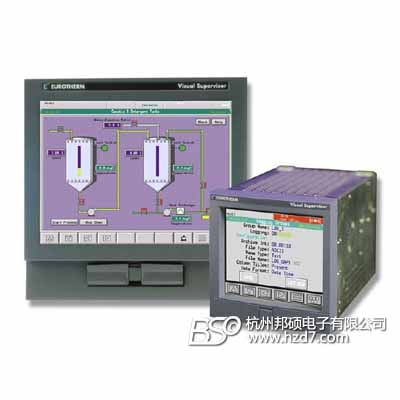

 Eurotherm T800 Visual Supervisor | |
| The T800 Visual Supervisor is an integrated Operator Interface (OI) with continuous and sequential control capability. Its open network architecture allows connection to the Process Interface (2500) I/O modules and other third party devices. Separating the processing from the I/O allows physical distribution of the modules which saves on wiring and installation costs. | ||
Protocols Available to Validate T800 To  | ||
|
| ||
 |
 |
 |
 | |
|
|
| Single Cost Effective Unit |
| The Visual Supervisor is a cost effective "Mini DCS", combining HMI (Human Machine Interface), Process Control and Data acquisition in one device, which can be used as a stand alone "unit solution" or as a building block within a larger system. The Visual Supervisor, together with the Eurotherm 2500 remote IO system offers a highly flexible and high integrity control system. It offers advance regulatory control, sequential control, batch and recipe capabilities together with "built-in 21 CFR Part 11" features required for pharmaceutical and healthcare applications. | |
| The T800 Visual Supervisor is a multi-function unit providing all the features that are required to control and monitor units (e.g. Reactor, Freeze dryer, Water purification systems, Fermenters, Autoclaves, Sterilisers, Furnaces, etc). It combines Eurotherm's well-established expertise in Industrial control, data management and process automation into a single cost effective unit. The Visual Supervisor's custom displays provide easy and quick access to all the information required by the operator to monitor and control the operation of the plant effectively. |
| Batch Solution |
| Visual Supervisor with its advanced recipe and batch capability provides a powerful solutions for controlling batch process and providing comprehensive batch reports. |
| Open I/O Network |
| The Visual Supervisor provides support for Ethernet, modbus/TCP, Profibus DP/DPv1 and serial Modbus RTU. It can also be connected to the ALIN (Arcnet LIN) or ELIN (Ethernet LIN) local network, allowing both peer-to-peer and system communications. |
| Setpoint Programmer |
| The graphical setpoint program of the Visual Supervisor offers between one and 16 analogue setpoint profiles, and between one and 32 digital output profiles from a single time base. It is capable of running up to four setpoint programs simultaneously. |
| Auditor Features |
| The Auditor feature on the Visual Supervisor has been specifically designed to meet the requirement of the FDA's 21 CFR Part 11. Data security is paramount for FDA approved processes and the Visual Supervisor ensures that the data is not lost or tampered with. The Auditor features provide comprehensive data security and tractability. With the Auditor feature, Electronic signature is configurable for all actions which maybe performed form the Visual Supervisor display including the customised displays and the standard features such as batch, recipe changes, access control changes, etc. |
 |
 |
 |
