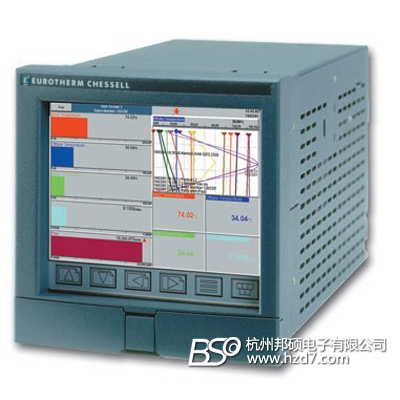

英国欧陆(EUROTHERM) CHESSELL记录仪5100V
产品编号：225117-858
产品型号：5100V
市场价格：0元/台
批发价格：0元/台
更新时间：2011.03.23
浏览次数：
详细信息
| ||
 E57766 | ||
| DATA ACQUISITION | |
| The 5100V offers a 5.5" color, 1/4 VGA TFT touch screen display, up to 12 input channels with a 125ms total sample rate and 12 relay outputs. Universal input channels accept thermocouples, 2/3-wire RTD's, DC mA (w/shunt), DC millivolts and volts (-20 to +100), potentiometer and contact closure. Each channel is individually isolated channel to channel, channel to electronic common and channel to ground (all 300V RMS). |  |
| The 12 input channels can be configured to be updated using Ethernet or Serial Modbus comms (no input channel hardware thus is required) and the 36 math channels can similarly be configured for a total of 48 points. | |
| The 5100V has 8 MB of internal Flash memory for secure, short term, data storage. As standard, the 5100V has a removeable PC Flash Card slot accessible from the front. Data stored within the internal memory can be archived to the Flash card (or floppy) on demand or at preset intervals. The 5100V will give indication of how long its internal memory and that of the removable media installed will last according to the configuration of the recorder. Data is stored in a tamper-proof binary format that can be used for secure, long term records of your process. | |
 | |
| Ethernet communications (FTP, modbus/TCP and SNTP) is standard on the 5100V. The 5100V can be configured to archive data automatically to an FTP Server. For example, a Windows 2000/XP PC running IIS. Archiving files over the Ethernet effectively gives a secure, infinite archiving capacity. | |
 |
Approximate duration for continuous recording of one Group of six channels is shown in the table to the left. |
| Serial ASCII (Bar Code Scanner Input) or Modbus RTU digital communications is optional. Both Ethernet and Serial modbus are available optionally as Masters for integration of remote I/O or remote PID controllers such as the Eurotherm model 2500. | |
|
|
| The 5000 Series is truly designed for todays networked world and can be accessed via a Local Area Network, dial-up connection, Intranet or Internet. |
|
|
| DATA VISUALIZATION | |
| The 5100V has a color 1/4 VGA (320 x 240 pixels) 5.5" TFT LCD with cold cathode backlight, fitted with a resistive analog, Touch-Panel designed for ease of use and simple configuration. We understand the need for data to be represented in the most interpretable format for the operator. The 5100V offers vertical trend, horizontal trend, vertical bar graph, horizontal bar graph and numeric standard displays. In addition, with the Screen Builder feature, up to four additional displays can be customized to best reflect the given process. Any of the standard display formats can be placed anywhere on the screen. Pictures may also be loaded into a 5100V for use as a background image. This truly makes a standard product into a process specific special! | |
 | |
| The Bridge 5000 software permits any remote PC user to login (Maximum of 4 simultaneously) and create a realtime process monitor. The PC will display a window that represents any of the screens possible on the 5100V or any 5000 Series to which it is connected and display live data. This software provides unparalleled viewing and full engineering access (with strict access control) of real-time data. |
