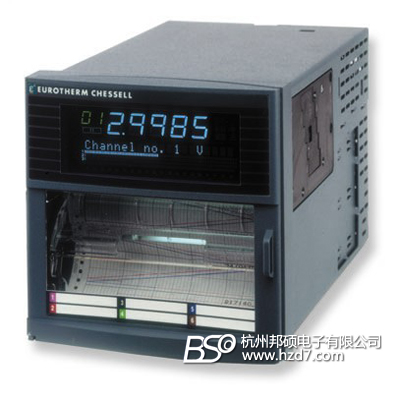

英国欧陆(EUROTHERM) CHESSELL记录仪4103C

产品编号：225712-670

产品型号：4103C

市场价格：0元/台

批发价格：0元/台

更新时间：2011.03.23

浏览次数：

详细信息

1-4 continuous traces with annotation option

4-color digital display with analog bar graphs

Roll or z-fold chart

Front panel, local or remote PC configuration

Universal isolated inputs

Math, timers, counters and totalizers

PC card reader

MODBUS®/Profibus communications

9.3?total depth behind panel

Up to 16 relay outputs

Up to 4 analog outputs

Content or event inputs

Remote file transfer

The 4103C is a 1 to 4 continuous pen instrument with an 8Hz sample rate. The unit has the option of a PC card drive for multiple configuration storage, transfer of process data to computer database or spread sheet packages. Extensive mathematic capabilities include totalizers, timers and counters as well as application specific equations. The 4103C's annotation allows scale and message printing and time tagged numerical values to be printed on the chart.

Features and Options

NUMBER OF CHANNELS
1 Channels
2 Channels
3 Channels
4 Channels

POWER SUPPLY
90-264Vac, 45-65Hz
24-48Vdc or Vac 45-400Hz

CASSETTE TYPE
Roll Cassette (32m)
Z-Fold Cassette (16m)

CHART DIVISIONS
40 Division
50 Division
60 Division
70 Division
75 Division

ADDITIONAL APPROVALS
Seismic (IEEE344:1987-inc lock)

ANNOTATION

OPERATING LANGUAGE
English
French
German

MANUAL LANGUAGE
English
French
German

CHART ILLUMINATION

24V TRANSMITTER POWER SUPPLY
120V 3 Channel TPS
240V 3 Channel TPS
110V 3 Channel TPS
220V 3 Channel TPS
120V 6 Channel TPS
240V 6 Channel TPS
110V 6 Channel TPS
220V 6 Channel TPS

ADDITIONAL OPTIONS
Portability Kit
AC Monitor Option
Conformal Coating (tropicalization)

RELAYS CLOSED IN ALARM
4 NC Relay Outputs
8 NC Relay Outputs
12 NC Relay Outputs
16 NC Relay Outputs

RELAYS OPEN IN ALARM
4 NO Relay Outputs
8 NO Relay Outputs
12 NO Relay Outputs
16 NO Relay Outputs

RELAYS FORM C
3 Form C relay o/p
6 Form C relay o/p
9 Form C relay o/p
12 Form C relay o/p

ANALOG RETRANSMISSION
2 Ch Retrans
4 Ch Retrans

EVENTS INPUTS
6 Events Inputs

MEMORY CARD DRIVER
ASCII and Packed Logging
(Inc PC Review S/W)
Configuration Save/Restore

PCMCIA MEMORY CARD
2MB SRAM Card
6MB SRAM Card

COMMUNICATIONS
RS 485 Modbus
RTU RS 232 Modbus
RTU RS 232 File Transfer
RS485 File Transfer Profibus
Hi-Speed Profibus DP

PEN OFFSET COMPENSATION

CUSTOM MESSAGES

MATHEMATICAL CAPABILITIES
Level 1(basic functions), 16 derived variables
Level 2 (advanced functions), 16 derived variables
Level 3, Level 2 plus exponential Display

TOTALIZERS, TIMERS & COUNTERS
2 Totalizers
4 Totalizers
6 Totalizers
6 Timers & 6 Counters
6 Totalizers, timers, counters

CUSTOM CURVE

ENVIRONMENTAL PROBES

AC MEASUREMENT INPUTS
3 Current Input
1 Voltage Input
1 Voltage & 1 Current I/P
1 Volt & 3 Current I/Ps
3 Voltage Inputs

VOLTAGE INPUT RANGE
0-300Vac, 45-65Hz
0-500Vac, 45-65Hz

CURRENT INPUT RANGE
0-25Aac, 45-65Hz
0-100Aac, 45-65Hz
0-1000Aac (Switchable)

INPUT SIGNAL CONDITIONING
250 ohm shunt resistor
100 ohm shunt resistor
100:1 attenuator

CERTIFICATION
CuL
CE
