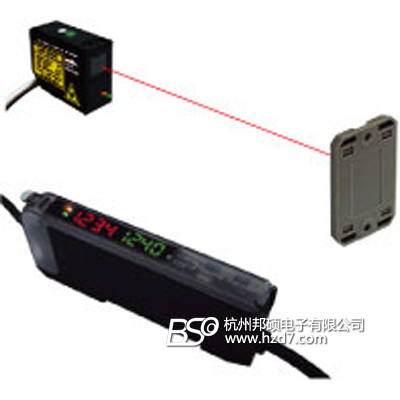

日本北阳HOKUYO LDA系列放大器分离型数字激光传感器

产品编号：191349-975

产品型号：LDA系列

市场价格：0元/只

批发价格：0元/只

更新时间：2011.03.29

浏览次数：

详细信息

特点

可见激光射线
高速应答时间, 60µs(快速模式)
3 kinds of beam can be chosen(Spot, area, line)
IP67 for sensor head
Sensitivity correcting function is provided
Coaxial-reflection type is also lined-up

应用

Warp detection(Through-beam type)	Transparent detection(Coaxial retro-reflection type)


Height/width detection(Through-beam, length measurement type)	Uneven goods detection(Coaxial retro-reflection type, long distance)


Tip work detection(Coaxial reflection type)

模式

教学模式

1点 teaching It can set not to detect back-ground by teaching under no object.

Two-point teaching It sets the threshold at the center between 2 points teaching(object and no object).

Auto teaching It can set the sensitivity automatically.(it can be set even if the object is moving)

Teaching length measurement It can distinguish the width(length) of object in the specific area. If it would be over +10%, output 1 is executed and if over -10%, output 2 is executed.


Teaching transparent object This mode is to detect the transparent object with retro-reflection type head.(Glass or plastic film etc.) It can detect the object with a little variation of light-receiving amount such as transparent objects by making a one- point teaching under no objects.

Zone teaching It can detect within the area between upper and lower limit. It can set during ±10% of light-receiving amount. It can set without influence of background.

注意

This product is emitting visible laser beam and is classified as Class 2 by JIS C6802/IEC Laser Safety standard. When exporting to USA, US laser control, FDA(Food and Drug Administration) is applied. Please ask us in details.

透过型	透过型, 长度测量型



Coaxial retro-reflection type, Coaxial retro-reflection type, long distance, Coaxial reflection type

规格

Sensor head

Kind		Through-beam	Length measurement	Coaxial retro-reflection	Coaxial retro-reflection(long type)	Coaxial reflection
Model No.		JDA-15K5 Projector : JDA-15K5P Receiver : JDA-15K5R	JDA-15K5-W Projector : JDA-15K-WP Receiver : JDA-15K5-WR	HDA-70K3	HDA-350K3	HDA-08K1
Optical system				Coaxial reflection
Light source		Red semiconductor laser 650nm
Laser class		JIS/IEC Class 1		JIS/IEC Class 2
Max. power		390µW		3mW
Laser life		Approx. 45,000 hours(at 55 degrees C)
Detecting distance	Long	1.5m	1.5m(0.5m when measuring mode^*1)	0.08m to 7m^*2	0.5m to 35m^*2	0.8m^*3
	Standard			0.05m to 4m^*2	0.3m to 25m^*2	0.6m^*3
	Fast			0.02m to 2m^*2	0.1m to 14m^*2	0.2m^*3
Spot diameter		2mm (at 1.5m)	30×2.5mm (at 1.5m)	9mm (at 7m)^*4	45mm (at 35m)	1.3mm (at 0.8m)
Repeatability		0.2mm	0.3mm	0.2mm	0.2mm	0.2mm
Indicators		Laser emitting lamp(only projector) :green LED, Output lamp(only receiver) :orange LED		Laser emitting lamp : green LED, Output lamp : orange LED
Connection		Connector type
Ambient illuminance		Incandescent lamp : 3,000lx or less, sun light : 10,000lx
Ambient temperature/humidity		-10 to +55 degrees C(-20 to +60 degrees C when stored), 35 to 85%RH(35 to 95%RH when stored), not icing and condensing
Vibration resistance		Double amplitude 1.5mm, 10 to 55Hz, each 2 hour for X, Y and Z direction
Impact resistance		500m/s², each 3 time for X, Y and Z direction
Withstand voltage		1,000VAC/min.
Insulation resistance		20MΩ or more(500VDC)
Protective structure		IP67(IEC standard)
Case material		Body : Polycarbonate, window : glass, PMMA resin
Weight		90g	115g	45g
Accessory				Reflector(RRL-23S)	Reflector(RRL-51S)

*1 Response time at length measurement mode should be set to Long mode or Standard mode.
*2 This value is used with attached reflector.
*3 This value is used with 200mm^□ white paper.
*4 Spot diameter can be changed by using the attachment.

Amplifier

Model No.	LDA-DC	LDA-DA
Power source	12 to 24VDC ±10%
Current consumption	45mA when 24VDC(including sensor head, excluding analog)
Response speed (sensing mode)	60µsec/500µsec/2msec(Fast/Standard/Long by sensing mode)
Output	NPN open-collector	PNP open-collector
Control output	100mA 24VDC or less, residual voltage 1.8V or less
Indicators	Laser emitting lamp : green LED, Output lamp : orange LED, Teaching lamp : red LED, Channel lamp : green(1/2CH)
Digital display	7-segment LED, 8 digits
Timer function	On-delay/Off-delay/One-shot
Timer	1ms to 9s
Teaching	One-point, two-points, zone, transparent object, length measurement
Operating mode	Light-ON/Dark-ON changeover
Analog output	4 to 20mA
Input/output setting	External input setting : one-point teaching, synchronous input, Projection-off, counter-reset,output setting : 2CH output + alarm setting
Zero-reset	Provided
Initial reset	Provided(return to initial setting)
Connection	Cable type(2m long)
Insulation resistance	20MΩ or more(500VDC)
Withstand voltage	1,000VAC/min.
Ambient temperature/humidity	-25 to +55 degrees C(-20 to +60 degrees C when stored), 35 to 85%RH(35 to 95%RH when stored), not icing and condensing
Vibration resistance	Double amplitude 1.5mm, 10 to 55Hz, each 2 hour for X, Y and Z direction
Impact resistance	500m/s², each 3 time for X, Y and Z direction
Protective structure	IP50(IEC standard)
Case material	Polycarbonate
Weight	Approx. 65g(including cable)
Accessory	Fitting metal
Mounting	DIN-rail mounting
