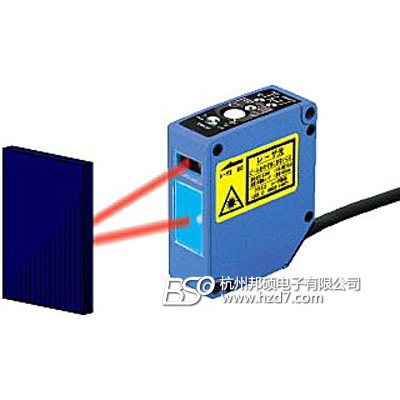

日本北阳HOKUYO PDA系列高精度激光型位移传感器
产品编号：191657-973
产品型号：PDA系列
市场价格：0元/只
批发价格：0元/只
更新时间：2011.03.29
浏览次数：
特点
- 内置放大器，低成本
- 由于采用PSD(Position Sensitive Detector)可以实现高精度检测
- 防护等级为IP67
- 通过教学键可以使设置容易(上限和下限)
- 宽的检测距离从 0mm -250mm(4种)
规格
|
型号 |
PDA-03KT |
PDA-10KT |
PDA-13KT |
PDA-25KT | |
|
检测区域 |
30±4mm |
100±35mm |
130±50mm |
250±150mm | |
|
光斑直径(中心) |
φ0.5mm |
1×1.5mm |
1×1.5mm |
1.5×2.5mm | |
|
解析度*1 |
1µm/100ms |
15µm/100ms |
20µm/100ms |
150µm/100ms | |
|
3µm/10ms |
50µm/10ms |
70µm/10ms |
500µm/10ms | ||
|
10µm/1ms |
150µm/1ms |
200µm/1ms |
1,500µm/1ms | ||
|
光源 |
Visible semi-conductor laser(Wavelength : 650nm, 3.3mW or less, Class 2) | ||||
|
电源 |
12 to 24VDC(-5 to +10%) | ||||
|
消耗电流 |
120mA at 12VDC, 75mA or less at 24VDC | ||||
|
集电极开路输出解析度 |
Resolution of analog output + Hysteresis | ||||
|
线性度*2 |
±2%FS |
±3.5%FS |
±5%FS | ||
|
Temperature drift |
±0.02%FS/degrees C | ||||
|
应答时间 |
100ms/10ms/1ms by changeover switch | ||||
|
感度切换 |
Set/FIX/Auto by changeover switch | ||||
|
功能 |
Handling mode |
Set/Run/RUN Off-delay Position switch | |||
|
Detection range setting |
2-point teaching system | ||||
|
Offset adjusting range |
Analog output can be fixed to 12.00mA at optional point within detectable range | ||||
|
输入 |
Blanking input |
Provided | |||
|
Remote teaching |
Provided | ||||
|
输出 |
Analog output |
4 to 20mA | |||
|
Control output |
NPN 集电极开路输出 30V, 100mA or less | ||||
|
定时 |
Off-delay 40ms by changeover switch | ||||
|
环境温湿度 |
-10 ℃ to +40 ℃, 35 to 85%RH | ||||
|
预热时间 |
≤15分钟 | ||||
*1 In case of the center of detecting range, AUTO sensitivity and alumina ceramic
*2 Supplementation of linearity : Error from linearity of analog current when detecting white alumina ceramic
