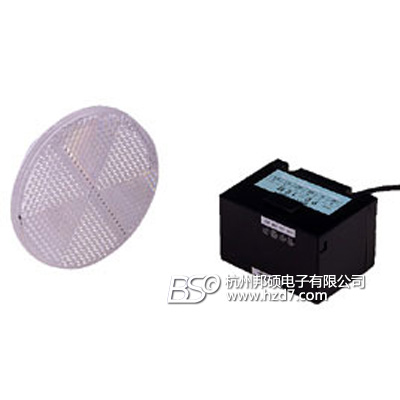

日本北阳HOKUYO PD-10M/8NM光距离型光电开关
产品编号：193443-262
产品型号：PD-10M/8NM
市场价格：0元/台
批发价格：0元/台
更新时间：2011.03.29
浏览次数：
特点
- 本传感器是红外线光距离传感器.
- This sensor provides comparator output(2 output) that can set optional distance value and alarm output that executes at the out of detectable area.
- This sensor provides light-emission stop output for preventing interference.
规格
PD-10M/PD-10M2
|
型号 |
PD-10M |
PD-10M2 | |
|
电源 |
24VDC(±10%, ripple 10% or less) | ||
|
消耗电流 |
125mA or less | ||
|
检测距离 |
0.2 to 10m(when using specified reflector) | ||
|
检测物体 |
Plastic reflector with φ100mm(specified reflector)*1 | ||
|
重复度 |
±100mm | ||
|
绝对精度 |
±200mm | ||
|
Hysteresis |
300mm | ||
|
解析度 |
40mm | ||
|
输出 |
距离模拟量输出 |
0 to 10V(Output impedance 100Ω) |
0 to 10V(Output impedance 100Ω) |
|
报警输出 |
NPN open-collector output(30VDC, 50mA or less), ON when normal operation/OFF when it is out of detection area or light-reception level is less than rated value | ||
|
Comparator output(OUT 1,2) |
NPN open-collector output(30VDC, 50mA or less), OFF when it is within detection distance | ||
|
输入 |
Contact or transistor input, Stop to emit by shorting to -VIN(0V)(Alarm lamp lights up) | ||
|
指示灯 |
Power lamp(Green LED) : Lights up when putting power source on | ||
|
指向角 |
±2.5° | ||
|
应答时间 |
≤50ms*2 | ||
|
连接 |
1m长连线 | ||
|
环境照度 |
Halogen and incandescent lamp : 10,000lx or less, fluorescent lamp : 6,000lx or less | ||
|
环境温湿度 |
-10 degrees C to +50 degrees C, 85%RH or less(Not icing) | ||
|
抗振性能 |
10 to 55Hz Double amplitude 1.5mm Each 2 hour in X, Y and Z directions | ||
|
抗冲击性能 |
490m/s2 Each 10 time in X, Y and Z directions | ||
|
外壳材料 |
聚碳酸酯 | ||
|
重量 |
传感器 : 约200克, RRP-100 : 约65克 | ||
*1 也提供反射纸. 备索.
*2 电源接通后200ms内不测量.
PD-8NM1
|
型号 |
PD-8NM1 | |
|
电源 |
24VDC(±10%, ripple 10% or less) | |
|
消耗电流 |
125mA or less | |
|
检测距离 |
0.2 to 8m(when using 2 pcs of specified reflector) | |
|
检测物体 |
2 pcs of plastic reflector with 80mm□(specified reflector) | |
|
重复度 |
±100mm | |
|
绝对精度 |
±200mm(at 5m or less), ±300mm(at 5m or more) | |
|
Hysteresis |
300mm | |
|
解析度 |
40mm | |
|
输出 |
距离模拟量输出 |
0 to 10V(Output impedance 100Ω) |
|
Comparator output(OUT 1,2,3) |
NPN open-collector output(30VDC, 50mA), OFF when it is within detection distance | |
|
输入 |
Contact or transistor input, Stop to emit by shorting to -VIN(0V)(Alarm lamp lights up) | |
|
指示灯 |
Power lamp(Green LED) : Lights up when putting power source on | |
|
指向角 |
±2.5° | |
|
应答时间 |
50msec or less | |
|
连接 |
Cable 1m long | |
|
环境照度 |
Halogen and incandescent lamp : 10,000lx or less, fluorescent lamp : 6,000lx or less | |
|
环境温湿度 |
-10 degrees C to +50 degrees C, 85%RH or less(Not icing) | |
|
抗振性能 |
10 to 55Hz Double amplitude 1.5mm Each 2 hour in X, Y and Z directions | |
|
抗冲击性能 |
490m/s2 Each 10 time in X, Y and Z directions | |
|
外壳材料 |
聚碳酸酯 | |
|
重量 |
传感器 : 约200克, exclusive reflector for PD8 : 约 42克 | |
* 电源接通后200ms内不测量。
外部尺寸
传感器
* Output 3 in case of PD-8NM1
|
反射板 RRP-100 |
Exclusive reflector for PD-8NM1 |
|
|
|
输入/输出电路
|
PD-10M/PD-10M2 |
PD-8NM1 |
|
|
|
* It can stop to emit by short-circuited to -VIN(0V)
