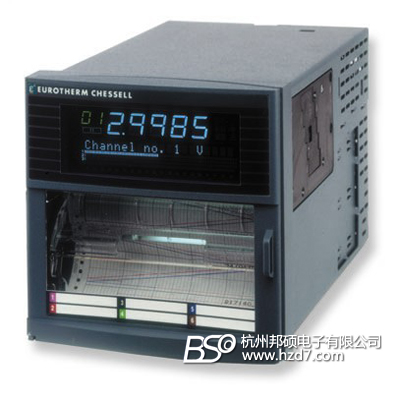

英国欧陆(EUROTHERM) CHESSELL记录仪4103M

产品编号：22592-623

产品型号：4103M

市场价格：0元/台

批发价格：0元/台

更新时间：2011.03.23

浏览次数：

详细信息

6-color multipoint

4-color digital display with analog bar graphs

Roll or Z-fold chart

Front panel, PC or remote configuration

Universal isolated inputs

Math, timers, counters and totalizers

PC card drive

MODBUS®/Profibus communications

9.3” total depth behind panel

Up to 16 relay outputs

Up to 4 analog retransmission

6 contact inputs

Remote file transfer

The 4103M has the same features and architecture as the 4103C, but replaces 4 continuous pens with a 6 color, multipoint print-head.

Features and Options

No OF UNIVERSAL INPUT CHANNELS
Up to 6 ChannelsPOWER SUPPLY
90-264V ac, 45-65Hz
24-48V dc, ac 45-400Hz CHART TYPE
Roll Cassette (32m)
Z-Fold Cassette (16m) CHART DIVISIONS
40 Division
45 Division
50 Division
60 Division
70 Division
75 DivisionOPERATING LANGUAGE
English
French
GermanMANUAL LANGUAGE
English
French
German24V TRANSMITTER POWER SUPPLY
120V 3 Channel TPS
240V 3 Channel TPS
110V 3 Channel TPS
220V 3 Channel TPS
120V 6 Channel TPS
240V 6 Channel TPS
110V 6 Channel TPS
220V 6 Channel TPS

ADDITIONAL OPTIONS
Portable Case
AC Monitor Kit

RELAYS CLOSED IN ALARM
4 NC Relay o/p
8 NC Relay o/p
12 NC Relay o/p
16 NC Relay o/pRELAYS OPEN IN ALARM
4 NO Relay o/p
8 NO Relay o/p
12 NO Relay o/p
16 NO Relay o/pRELAYS FORM C
3 Form C relay o/p
6 Form C relay o/p
9 Form C relay o/p
12 Form C relay o/p RETRANSMISSION
2 Ch Retrans
4 Ch Retrans EVENTS INPUTS
6 Events Inputs MEMORY CARD DRIVER
ASCII Logging
Configuration Save/Restore
Packed Logging (incl. PC s/w)PCMCIA MEMORY CARD
2MB SRAM Card
6MB SRAM Card

COMMUNICATIONS
RS 485 Modbus RTU
RS 232 Modbus RTU
RS 232 File Transfer
RS485 File Transfer
Profibus DP

CUSTOM MESSAGES MATHEMATICAL CAPABILITIES
Level 1 (basic functions) 16 derived variables
Level 2 (advanced functions) 16 derived variables
Level 3, level 2 plus exponential display TOTALIZERS, TIMERS & COUNTERS
2 Totalizers
4 Totalizers
6 Totalizers
6 Timers & 6 Counters
6 Totalizers/Timers/CountersAC MEASUREMENT INPUTS
3 Current Inputs
1 Voltage InputsVOLTAGE INPUT RANGE
0-300Vac, 45-65Hz
0-500Vac, 45-65HzCURRENT INPUT RANGE
0-25Aac, 45-65Hz
0-100Aac, 45-65Hz
0-1000Aac (Switchable)BOARD OPTIONS
Conformal Coating (tropicalization) INPUT SIGNAL CONDITIONING
250 ohm shunt resistor
100 ohm shunt resistor
100:1 attenuator

CERTIFICATION
CuL
CE
