欧陆eurotherm TE10P单相可控硅调整器
产品编号：11259-934
产品型号：TE10P
市场价格：0元/台
批发价格：0元/台
更新时间：2011.03.24
浏览次数：

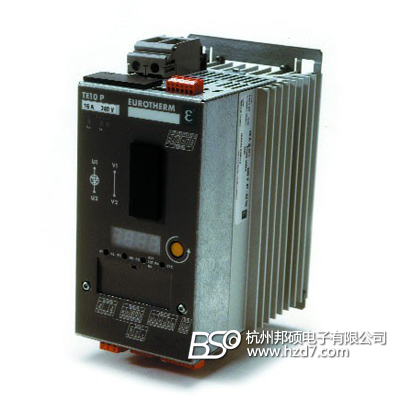

The TE10P provides high accuracy true power control for a wide variety of industrial single phase loads, even those that are difficult to control. Such loads as high precision semiconductor applications, moving loads with difficult temperature monitoring conditions, and time and temperature dependent loads such as silicon carbide, molybdenum, platinum and short wave infrared lamps may be accurately controlled with TE10P. The TE10P is configurable for a variety of inputs, firing modes, feedback parameters and load types. Currents from 16A to 400A
and voltages from 120Vac to 500Vac can be accommodated. A four-digit display and a pushbutton simplify operation, configuration, commissioning and maintenance. Optional communications with Modbus® or Profibus® allow the unit to be externally controlled. Other features include a configurable alarm relay and an analog retransmission of power. The optional model 260 diagnostic unit is used for monitoring and commissioning.
16A-400A, 500Vac max.
